Brand:
Panduit

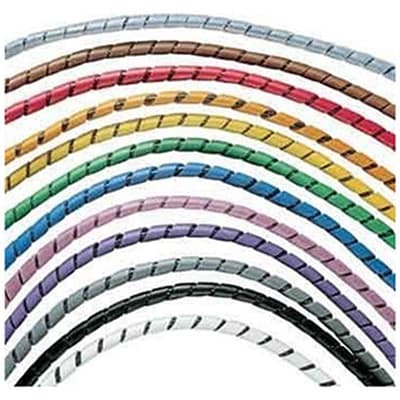

Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', flame retardant polyethylene, black. [T12FR-C20Y]; PAP133
Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', flame retardant polyethylene, black. [T12FR-C20Y]; PAP133
Regular price
2.653.310 VND
Regular price
Sale price
2.653.310 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T12FR-C20Y
MÔ TẢ SẢN PHẨM
Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', flame retardant polyethylene, black.
_THÔNG SỐ KỸ THUẬT:
| Application | (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Note | T12FR-C20Y replaces T12FR-C20 |
| Product Type | Spiral Wrap |
| Color | Black |
| Flammability Rating | UL94V-0 |
| Includes | Installation Tool |
| Material | Polyethylene |
| Resistance Properties | Flame Resistant |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Bundle Diameter (In.) | 0.0625 |
| Minimum Bundle Diameter (mm) | 1.6 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized E141152 |
| Wall Thickness (In.) | 0.03 |
| Wall Thickness (mm) | 0.8 |
| Part Features | Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable. |
