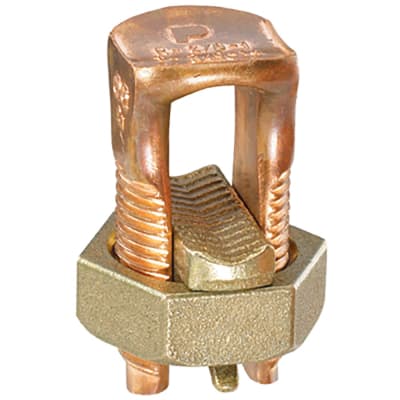

Panduit Split bolt, copper, type SBC, #8 STR - #4 STR AWG. [SBC3-C]; PAO756
Panduit Split bolt, copper, type SBC, #8 STR - #4 STR AWG. [SBC3-C]; PAO756
Regular price
348.550 VND
Regular price
Sale price
348.550 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Termination / Lugs Splices Split Bolts Accessories / Split Bolts: Panduit SBC3-C
MÔ TẢ SẢN PHẨM
The SBC3-C Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of con
_THÔNG SỐ KỸ THUẬT:
| Product Type | Mechanical Connectors - Split Bolt |
| Connection Type | Copper to Copper |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG SOL) | 8 |
| Maximum Copper Conductor Size (AWG STR) | 4 |
| Standards Met | UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Overall Height (In.) | 1.16 |
| Overall Height (mm) | 29.46 |
| Sub Brand | Pan-Lug™ |
| Part Features | high strength copper for corrosion resistance,extra long body,range taking,true hex design for correct fit |
