Brand:
Panduit

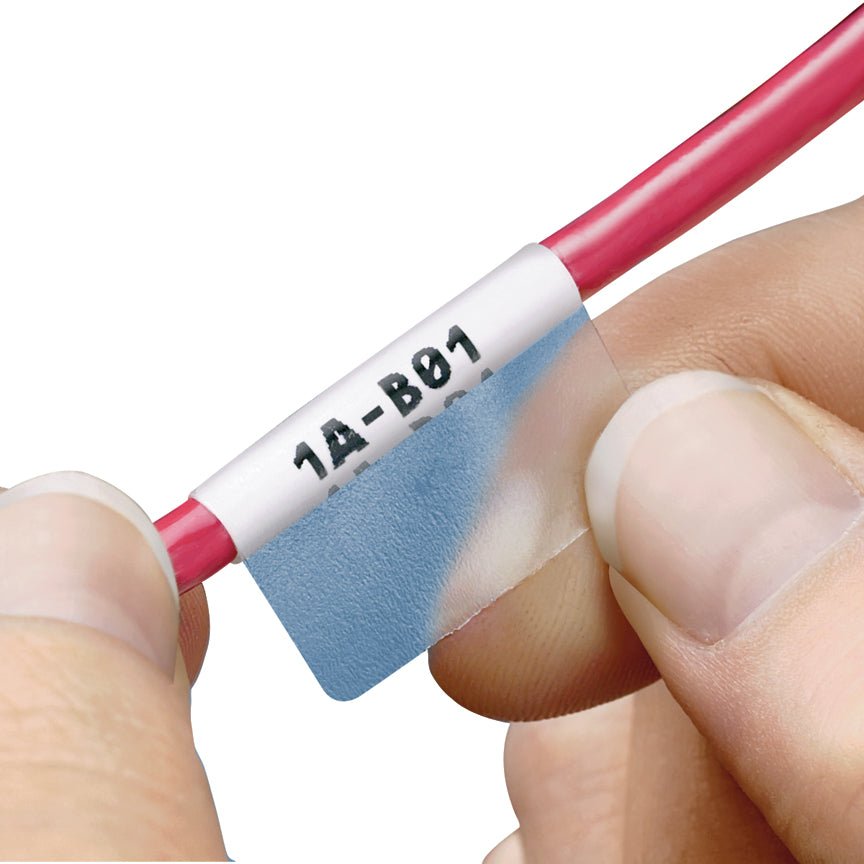

The portable printer self-laminating labels are clear vinyl with a white print-on area. They measure 0.5" (12.7mm) wide and 1.25" (31.75mm) long with a 0.38" (9.7mm) print-on area height and have a 12–10 AWG wire range. The fast-loading P1™ label cassette
The portable printer self-laminating labels are clear vinyl with a white print-on area. They measure 0.5" (12.7mm) wide and 1.25" (31.75mm) long with a 0.38" (9.7mm) print-on area height and have a 12–10 AWG wire range. The fast-loading P1™ label cassette
Regular price
1.089.690 VND
Regular price
Sale price
1.089.690 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Signs Labels Identification / Labels Markers Printers / Portable Printer Labels Cassettes: Panduit S050X125VAC
MÔ TẢ SẢN PHẨM
The S050X125VAC Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. The cassette contains an integrated memory device for automatic formatting, recall of
_THÔNG SỐ KỸ THUẬT:
| Note | For use with LS8E and LS8EQ printers |
| Product Type | Self-Laminating Label |
| Sub Brand | P1™ |
| Color | White |
| Compatible Wire Gauge (AWG) | 12-10 |
| Material | Vinyl |
| Number of Labels per Cassette | 225 |
| Standards Met | RoHS Complaint |
| Minimum Cable Diameter (In.) | 0.12 |
| Minimum Cable Diameter (mm) | 3.1 |
| Maximum Cable Diameter (In.) | 0.28 |
| Maximum Cable Diameter (mm) | 7.1 |
| Label Height (In.) | 1.25 |
| Label Height (mm) | 31.8 |
| Label Width (In.) | 0.5 |
| Label Width (mm) | 12.7 |
| Minimum Operating Temperature (°C) | -46 |
| Minimum Operating Temperature (°F) | -50 |
| Maximum Operating Temperature (°C) | 107 |
| Maximum Operating Temperature (°F) | 225 |
| Print-On Area Height (In.) | 0.38 |
| Print-On Area Height (mm) | 9.7 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Label Application | Cable & Wire Marking |
