Brand:
Panduit

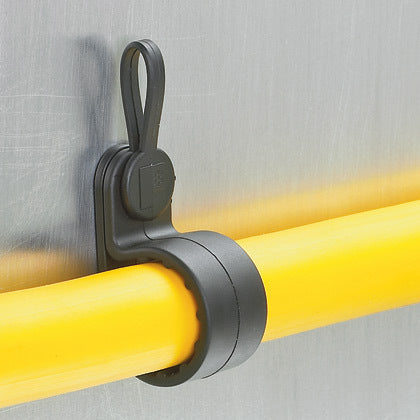

Panduit Pan-Clamp™ heavy duty fixed diameter clamp, .50" (12.7mm) bundle, black, standard package. [PC050-H25D-C0]; PAN735
Panduit Pan-Clamp™ heavy duty fixed diameter clamp, .50" (12.7mm) bundle, black, standard package. [PC050-H25D-C0]; PAN735
Regular price
19.250 VND
Regular price
Sale price
19.250 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Clamps Clips: Panduit PC050-H25D-C0
MÔ TẢ SẢN PHẨM
Pan-Clamp™ heavy duty fixed diameter clamp, .50" (12.7mm) bundle, black, standard package.
_THÔNG SỐ KỸ THUẬT:
| Application | For securing wires, cables, and hydraulic hoses in nearly all transportation applications including light vehicles, heavy trucks, and specialty vehicles. |
| Product Type | Fixed Diameter Clamp |
| Color | Black |
| Environment | Outdoor |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Mounting Hole Diameter (In.) | 0.28 |
| Mounting Hole Diameter (mm) | 7.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Resistance Properties | Flame-Resistant and Weather Resistant |
| Standards Met | Flammability: Meets UL94B HB, passes FMVSS 302; Chemical resistance @ 21°C (70°F): Excellent resistance to common transportation fluids including: ethyl and methyl alcohols, ethylene glycol, diesel fuel, gasoline, jet fuel, hydraulic fluid, transmission fluids and 10% Sodium chloride solution and RoHS Compliant. |
| Sub Brand | Pan-Clamp |
