Panduit Wire Routing, Management & Protection, [JP131W-L2]; PAH924

Name: Panduit Wire Routing, Management & Protection, [JP131W-L2]; PAH924
Brand: Panduit
SKU: PAH924
Availability: InStock

by Panduit

0₫

(Giá chưa VAT).

Mã kho: PAH924

Mã nhà sản xuất: JP131W-L2

Đơn vị tính: PC

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

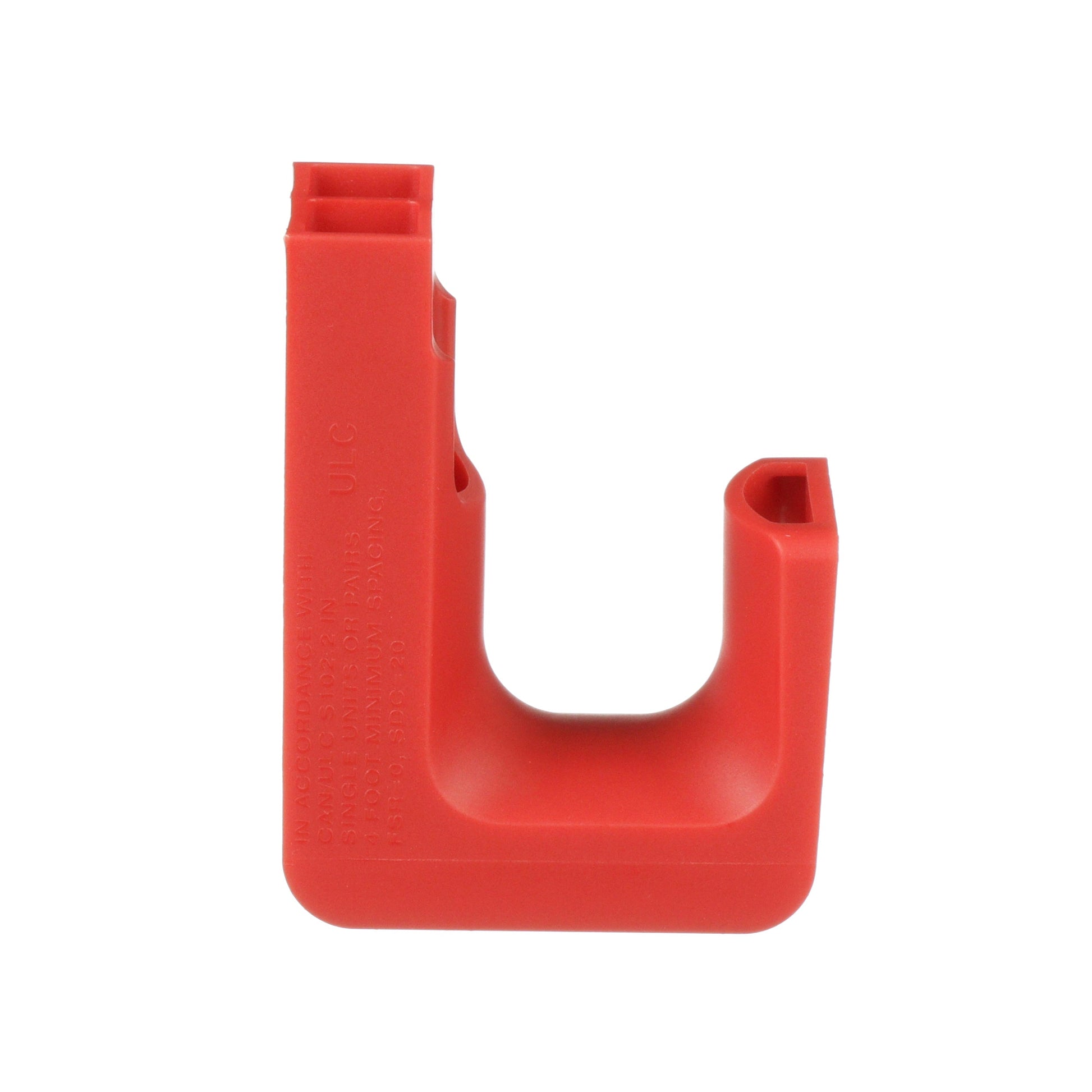

Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Hangers: Panduit JP131W-L2

MÔ TẢ SẢN PHẨM

J-PRO Cable support system, for wall mount applications, one 1/4 (M6) mounting hole for user supplied screw, 1.31 (33.3 mm) max. bundle capacity, nylon 6.6 with metal attachments, red, 50 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Application	Route High Performance Communication Cabling in Air Handling Spaces
Product Type	J-Pro Cable Support
Category 5e Cable Capacity	29
Category 6 Cable Capacity	25
Color	Red
Finish/Coating	NA
Material	Nylon 6.6
Maximum J-Hook Bundle Capacity	33.34
Mount Method	Wall Mount
Overall Height (In.)	3.33
Overall Height (mm)	84.6
Overall Length (In.)	2.36
Overall Length (mm)	59.9
Overall Width (In.)	2.36
Overall Width (mm)	59.9
Sub Brand	J-Pro
Static Load Capacity (Kg)	11.3
Static Load Capacity (lb)	25
Support Type	J-PRO J-Hook System
