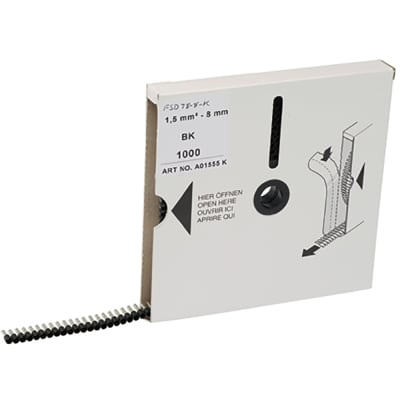

Panduit Insulated ferrules, single wire black DIN end sleeve on mini-reel, 16 AWG (1.5mm²), 0.31 (8.0mm) pin length. [FSD78-8-K]; PAL342

Name: Panduit Insulated ferrules, single wire black DIN end sleeve on mini-reel, 16 AWG (1.5mm²), 0.31 (8.0mm) pin length. [FSD78-8-K]; PAL342
Brand: Panduit
SKU: PAL342
Price: 4510.0 VND
Availability: InStock

by Panduit

4.510₫

(Giá chưa VAT).

Mã kho: PAL342

Mã nhà sản xuất: FSD78-8-K

Đơn vị tính: FT

Quy cách đóng gói: 1,000

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Terminals Terminal Kits / Ferrules: Panduit FSD78-8-K

MÔ TẢ SẢN PHẨM

Insulated ferrules, single wire black DIN end sleeve on mini-reel, 16 AWG (1.5mm²), 0.31 (8.0mm) pin length.

_THÔNG SỐ KỸ THUẬT:

Ferrule Type	Single Wire Standard
Insulation Material	NA
Copper Conductor Size (AWG)	16
Maximum Copper Conductor Size (AWG)	#16
Maximum Metric Conductor Size (mm²)	1.5
Minimum Copper Conductor Size (kcmil)	16
Minimum Metric Conductor Size (mm²)	3.2
Class G Copper Flex Conductor Size (AWG)	NA
Class H Copper Flex Conductor Size (AWG)	NA
Class I Copper Flex Conductor Size (AWG)	NA
Class K Copper Flex Conductor Size (AWG)	16
Class M Copper Flex Conductor Size (AWG)	16
Copper Code Conductor Size (AWG)	NA
DLO Copper Flex Conductor Size (AWG)	NA
CSA Temperature Rating (°C)	105
Flammability Rating	UL 94 HB
Wire Strip Length (In.)	0.39
Wire Strip Length (mm)	10
Pin Length (In.)	0.31
Pin Length (mm)	8
Insulation Type	Polypropylene
Insulation Diameter (In.)	0.13
Insulation Diameter (mm)	3
Inside Diameter (In.)	0.07
Inside Diameter (mm)	1.8
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Minimum Operating Temperature (°C)	-51
Minimum Operating Temperature (°F)	-60
Maximum Wire Insulation Diameter (In.)	0.13
Maximum Wire Insulation Diameter (mm)	3.2
Outer Diameter (In.)	0.08
Outer Diameter (mm)	2.1
Overall Length (In.)	0.57
Overall Length (mm)	14.5
Product Type	Single wire ferrules on reel (DIN color code)
Standards Met	DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545
Finish/Coating	Tin-Plated
For Use With	CP-881, APM-MRSP1516JMD
Packaging Type	Ferrules on a Reel
Base Material	Copper
Color Code	Black
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	16
Sub Brand	NA
Part Features	Polypropylene insulation housing available in DIN standard colors in reels to 500 to 3000 Designed specifically for use with the Ferrule Applicator (SCA-712022002) for high volume applications Continuously molded design provides consistent placement of ferrules in applicator to ensure fast, reliable terminations
