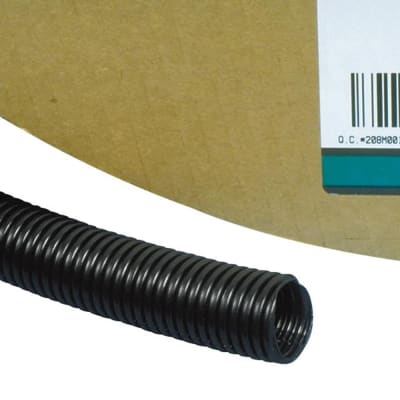

Panduit Corrugated loom tubing solid wall, .50" (12.7mm) x 100', heat stabilized nylon 6, black. [CLTS50N-C]; PAK543

Name: Panduit Corrugated loom tubing solid wall, .50" (12.7mm) x 100', heat stabilized nylon 6, black. [CLTS50N-C]; PAK543
Brand: Panduit
SKU: PAK543
Price: 1840700.0 VND
Availability: InStock

by Panduit

1.840.700₫

(Giá chưa VAT).

Mã kho: PAK543

Mã nhà sản xuất: CLTS50N-C

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Corrugated Loom Tubing Fittings: Panduit CLTS50N-C

MÔ TẢ SẢN PHẨM

Corrugated loom tubing solid wall, .50" (12.7mm) x 100', heat stabilized nylon 6, black.

_THÔNG SỐ KỸ THUẬT:

Application	Provides Protection for Cables, Crush Impact and Abrasion Resistant, Hold in Place with Push Type Cable Ties Adhesive or Push Type Mounts.
Product Type	Corrugated Loom Tubing
Color	Black
Environment	Indoor
Flammability Rating	UL94-HB
Inside Diameter (In.)	0.51
Inside Diameter (mm)	13
Material	Nylon 6
Resistance Properties	Crush Impact and Abrasion Resistant
Maximum Operating Temperature (°C)	110
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°F)	230
Minimum Operating Temperature (°F)	-40
Nominal Diameter (mm)	12.7
Outer Diameter (In.)	0.65
Outer Diameter (mm)	16.6
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	RoHS Compliant
Part Features	Provides protection for cables, Crush impact and abrasion resistant, Hold in place with push type cable ties adhesive or push type mounts
