Brand:
Panduit

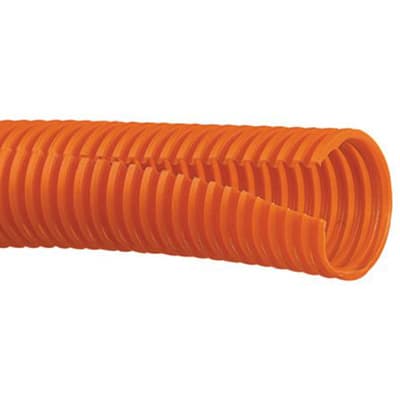

Panduit Corrugated loom tubing slit wall, 1" (25.4mm) x 100' (30.5m), polyethylene, orange. [CLT100F-C3]; PAK466
Panduit Corrugated loom tubing slit wall, 1" (25.4mm) x 100' (30.5m), polyethylene, orange. [CLT100F-C3]; PAK466
Regular price
3.156.590 VND
Regular price
Sale price
3.156.590 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Routing Management Protection / Abrasion Protection / Corrugated Loom Tubing Fittings: Panduit CLT100F-C3
MÔ TẢ SẢN PHẨM
The CLT100F-C3 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-H
_THÔNG SỐ KỸ THUẬT:
| Application | Covers wire and cable to protect from abrasion |
| Note | Slit Wall |
| Product Type | Corrugated Loom Tubing |
| Color | Orange |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.91 |
| Inside Diameter (mm) | 23.2 |
| Material | Polyethylene |
| Resistance Properties | Provides light crush and impact resistance |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Outer Diameter (In.) | 1.1 |
| Outer Diameter (mm) | 28 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly |
