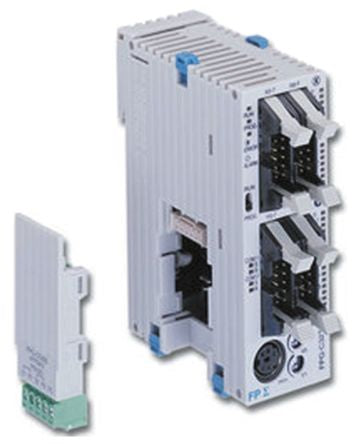

Panasonic FPG PLC CPU, Ethernet, ModBus Networking RS232C Interface, 32000 Steps Program Capacity, 16 Inputs, 16 Outputs [FPG-C32T2H]; 815-5760
by Panasonic
0₫
Mã kho: 8155760
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| For Use With | Minas A4 Servo Drives |
| Manufacturer Series | FPG |
| Number of Inputs | 16 |
| Voltage Category | 24 V dc |
| Output Type | NPN, Transistor |
| Number of Outputs | 16 |
| Network Type | Ethernet, ModBus |
| Program Capacity | 32000 Steps |
| Programming Interface | RS232C |
| Dimensions | 90 x 25 x 60 mm |
| Maximum Operating Temperature | +55°C |
| Depth | 60mm |
| Length | 90mm |
| Minimum Operating Temperature | 0°C |
| Mounting Type | DIN Rail |
| Programming Language Used | Function Block, Instruction List, Ladder Diagram, Sequential Function Chart, Structured Text |
| Output Current | 300 mA |
| Memory | 256K Words |
| Width | 25mm |
