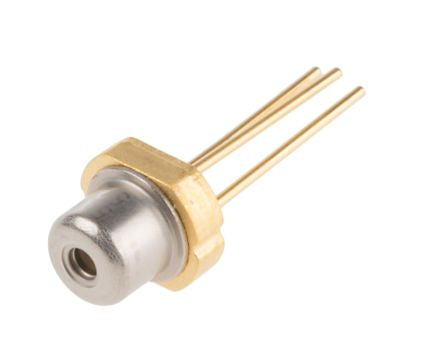

Osram Opto PL 520_B1_2 Green Laser Diode 515Nm 30mW, 3-Pin TO-38 package [PL 520_B1_2]; 876-8707
0₫
Mã kho: 8768707
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Wavelength | 515nm |
Laser Type | Continuous Wave |
Optical Output Power | 30mW |
Number of Pins | 3 |
Mounting Type | Through Hole |
Laser Colour | Green |
Perpendicular Beam Divergence FWHM | 25° |
Parallel Beam Divergence FWHM | 11° |
Maximum Operating Current | 140mA |
Dimensions | 3.8 (Dia.) x 3.15mm |
Length | 10mm |
Height | 3.15mm |
Diameter | 3.8mm |
Maximum Supply Voltage | 8V |
Supply Voltage Range | 7 → 8 V |
Package Type | TO-38 |
Minimum Supply Voltage | 6.5V |
Reverse Voltage | 2V |
