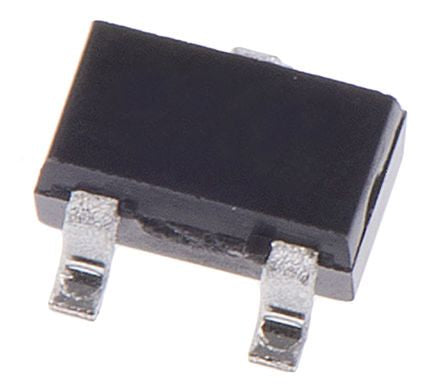

NTS4001NT1G N-Channel MOSFET, 270 mA, 30 V, 3-Pin SOT-323 ON Semiconductor [NTS4001NT1G]; 780-4764
0₫
Mã kho: 7804764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 270 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-323 (SC-70) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 330 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 1.35mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Length | 2.2mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.9mm |
| Typical Gate Charge @ Vgs | 0.9 nC @ 5 V |
