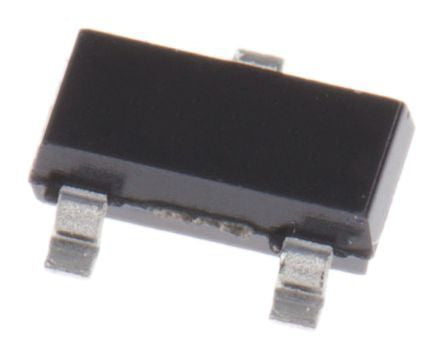

ON Semiconductor, NTR1P02LT1G [NTR1P02LT1G]; 186-7202
0₫
Mã kho: 1867202
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 1.3 A |
Maximum Drain Source Voltage | 20 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 350 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.25V |
Minimum Gate Threshold Voltage | 0.7V |
Maximum Power Dissipation | 400 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | +12 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Forward Diode Voltage | 1V |
Length | 3.04mm |
Width | 1.4mm |
Maximum Operating Temperature | +150 °C |
Height | 1.01mm |
Automotive Standard | AEC-Q101 |
Typical Gate Charge @ Vgs | 3.1 nC @ 4.5 V |
