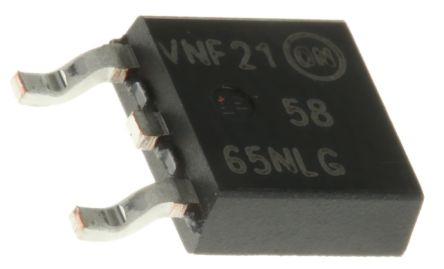

NTD5865NLT4G N-Channel MOSFET, 40 A, 60 V, 3-Pin DPAK ON Semiconductor [NTD5865NLT4G]; 719-2894
0₫
Mã kho: 7192894
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 40 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 19 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 52 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 6.73mm |
| Width | 6.22mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 29 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Height | 2.38mm |
