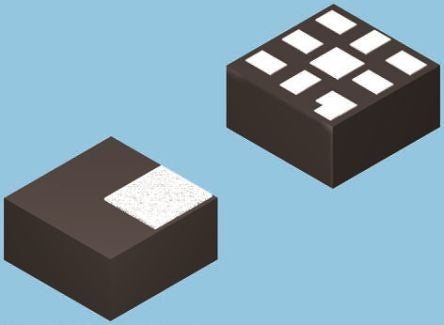

ON Semiconductor NC7NZ17L8X, Triple Non-Inverting Schmitt Trigger Power Down High Impedance Buffer, 8-Pin US [NC7NZ17L8X]; 166-3482
0₫
Mã kho: 1663482
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | TinyLogic UHS |
| Logic Function | Buffer |
| Number of Channels | 3 |
| Schmitt Trigger Input | Yes |
| Input Type | Schmitt Trigger |
| Output Type | Power Down High Impedance |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | US |
| Pin Count | 8 |
| Maximum High Level Output Current | -32mA |
| Maximum Low Level Output Current | 32mA |
| Maximum Propagation Delay Time @ Maximum CL | 7.3ns |
| Dimensions | 2 x 2.3 x 0.7mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 1.65 V |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50pF |
| Length | 2mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Height | 0.7mm |
| Width | 2.3mm |
