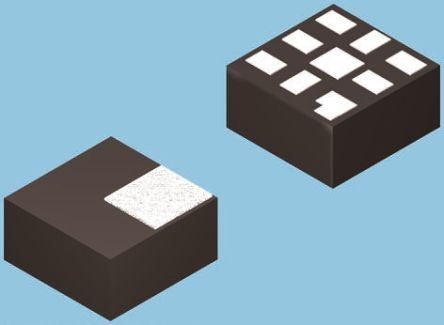

ON Semiconductor FXMAR2102L8X, Voltage Level Shifter, 3-State, 8-Pin MicroPak [FXMAR2102L8X]; 166-3568
0₫
Mã kho: 1663568
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | FXMA |
| Logic Function | Voltage Level Translator |
| Maximum High Level Output Current | -50mA |
| Maximum Low Level Output Current | 50mA |
| Output Type | 3 State |
| Maximum Propagation Delay Time @ Maximum CL | 7 ns @ 50 pF |
| Mounting Type | Surface Mount |
| Package Type | MicroPak |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Dimensions | 1.6 x 1.6 x 0.5mm |
| Height | 0.5mm |
| Length | 1.6mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Operating Temperature | +85 °C |
| Width | 1.6mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 5.5 V |
