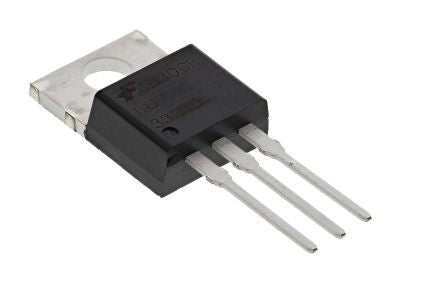

FQP33N10 N-Channel MOSFET, 33 A, 100 V QFET, 3-Pin TO-220AB ON Semiconductor [FQP33N10]; 145-4526
0₫
Mã kho: 1454526
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 33 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 52 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 127 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Height | 9.4mm |
| Typical Gate Charge @ Vgs | 38 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Width | 4.83mm |
| Transistor Material | Si |
| Length | 10.67mm |
| Maximum Operating Temperature | +175 °C |
| Series | QFET |
