![ON Semiconductor CAT24C32HU4I-GT3 7814815](http://nguyenxuong.com/cdn/shop/products/R7814815-01_444x419.jpg?v=1594205619)

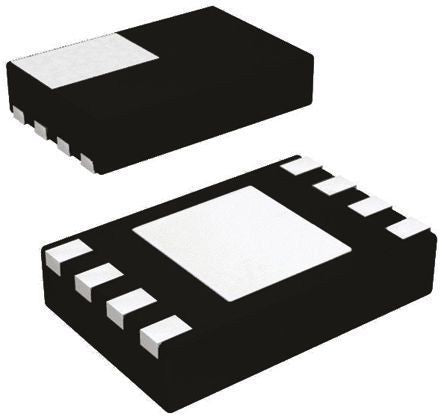

ON Semiconductor CAT24C32HU4I-GT3, 32kbit EEPROM Memory 8-Pin UDFN I2C [CAT24C32HU4I-GT3]; 781-4815
0₫
Mã kho: 7814815
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 32kbit |
Interface Type | I2C |
Package Type | UDFN |
Mounting Type | Surface Mount |
Pin Count | 8 |
Organisation | 4k x 8 bit |
Minimum Operating Supply Voltage | 1.7 V |
Maximum Operating Supply Voltage | 5.5 V |
Number of Bits per Word | 8bit |
Length | 3.05mm |
Width | 2.05mm |
Height | 0.5mm |
Dimensions | 3.05 x 2.05 x 0.5mm |
Minimum Operating Temperature | -40 °C |
Number of Words | 4096 |
Data Retention | 100yr |
Maximum Operating Temperature | +85 °C |
