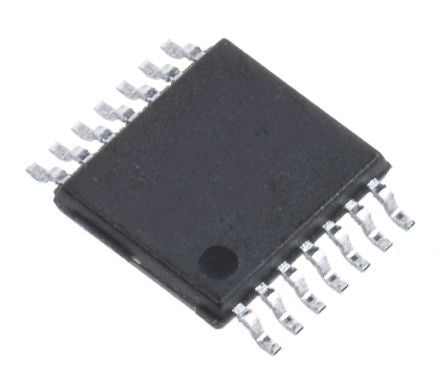

ON Semiconductor, 74VHC125MTCX [74VHC125MTCX]; 186-7252
0₫
Mã kho: 1867252
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | VHC |
| Logic Function | Buffer |
| Maximum High Level Output Current | -8mA |
| Maximum Low Level Output Current | 8mA |
| Output Type | 3 State |
| Maximum Propagation Delay Time @ Maximum CL | 13 ns @ 50 pF |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 14 |
| Number of Elements per Chip | 1 |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Height | 1.05mm |
| Length | 5.1mm |
| Maximum Operating Supply Voltage | 2 → 5.5 V |
| Minimum Operating Supply Voltage | 2 V |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 4.5mm |
