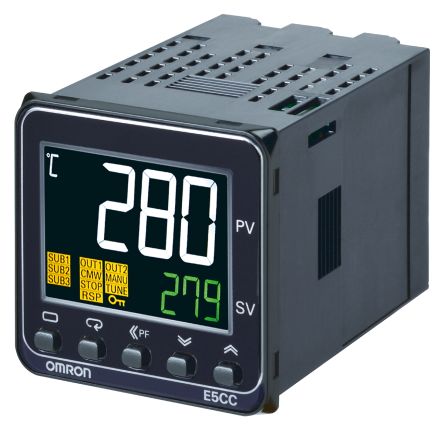

Omron E5CC Panel Mount PID Temperature Controller, 48 x 48mm 3 Input, 1 Output Voltage [E5CC-QX2ABM-001]; 106-5980
by Omron
0₫
Mã kho: 1065980
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Voltage |
| Supply Voltage | 100 240 V ac |
| Size | 48 x 48mm |
| Number of Inputs | 3 |
| Number of Outputs | 1 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +55°C |
| Temperature Range | -200 +1300 (Type K Thermocouple ) °C, -200 +1300 (Type N Thermocouple) °C, -200 +850 (Pt100) °C, -199.9 +400 (Type T Thermocouple) °C, -199.9 +400 (Type U Thermocouple) °C, -199.9 +500 (JPt100) °C, -100 +850 (Type J Thermocouple) °C, -100 +850 (Type L Thermocouple) °C, 0 +1300 (Type PLII Thermocouple) °C, 0 +1700 (Type R Thermocouple) °C, 0 +1700 (Type S Thermocouple) °C, 0 +2300 (Type W Thermocouple) °C, +100 +1800 (Type B Thermocouple) °C |
| Display Type | 11-Segment Digital Display |
| IP Rating | IP00, IP20, IP66 |
| Range | Omron E5CC |
| Termination Type | Screw |
| Series | E5CC |
| Mounting Type | Panel Mount |
| Display Colour | White |
| Panel Depth | 72.1mm |
| Input Type | Universal (Analogue), Universal (Pt), Universal (Thermocouple) |
