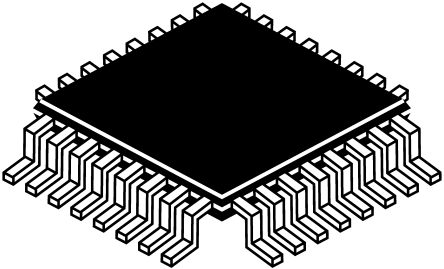

NXP MKL05Z32VLC4, 32bit ARM Cortex M0+ Microcontroller, 48MHz, 32 kB Flash, 32-Pin LQFP [MKL05Z32VLC4]; 169-7278
by NXP
0₫
Mã kho: 1697278
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis L |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | ARM Cortex M0+ |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 4 kB |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of I2C Channels | 1 |
| ADCs | 1 (12 bit) |
| ADC Resolution | 12bit |
| Length | 7mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 16bit |
| Number of UART Channels | 1 |
| Pulse Width Modulation | 8 Channel |
| Timers | 1 x 16 bit |
| Dimensions | 7 x 7 x 1.45mm |
| Number of Timers | 2 |
| Program Memory Type | Flash |
| PWM Channels | 8 |
| Height | 1.45mm |
| Width | 7mm |
