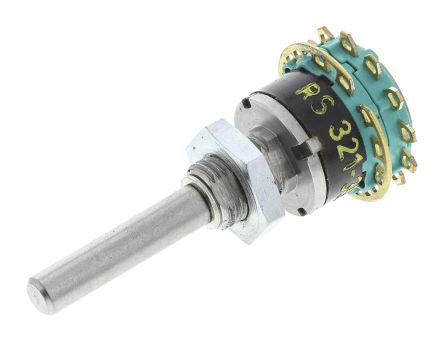

NSF My shorting, 6 Position DP6T Rotary Switch, 1.5 A, Solder [500398-000-000-000]; 321-357
by NSF
0₫
Mã kho: 321357
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | My shorting |
Contact Configuration | DP6T |
Contact Current Rating | 1.5 A |
Number of Switch Positions | 6 |
Number of Contacts | 2 |
Voltage Rating | 115V ac |
Diameter | 12.2mm |
Dimensions | 12.2 x 37mm |
Mounting Type | Panel Mount |
Mounting Hole Size | 5.05 x 4.55 mm |
Terminal Type | Solder |
Case Material | Diallylphthalate |
Maximum Operating Temperature | +85°C |
Contact Material | Gold |
Mechanical Life | 25000Operations |
Height | 37mm |
Minimum Operating Temperature | -40°C |
