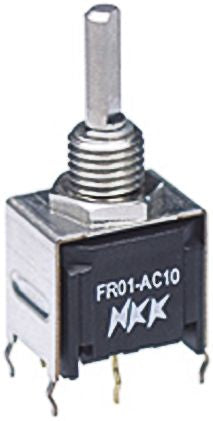

NKK Switches, 10 Position, Decimal Complement Rotary Switch, 100 mA, Through Hole [FR01-AC10PB-ST]; 197-858
by NKK Switches
0₫
Mã kho: 197858
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Current Rating | 100 mA |
Number of Switch Positions | 10 |
Voltage Rating | 5V dc |
Output Coding | Decimal Complement |
Depth | 11mm |
Width | 11.6mm |
Dimensions | 11.6 x 11 x 28.05mm |
Mounting Type | PCB |
Mounting Hole Size | 0.8 → 1 mm |
Terminal Type | Through Hole |
Case Material | Glass Fibre Reinforced PBT |
Maximum Operating Temperature | +85°C |
Legend Text | 0-9 |
Legend Text Colour | White |
Minimum Operating Temperature | -25°C |
Contact Material | Gold Plated Phosphor Bronze (Stationary); Gold Plated Copper Alloy (Movable) |
Height | 28.05mm |
Mechanical Life | 10000Operations |
