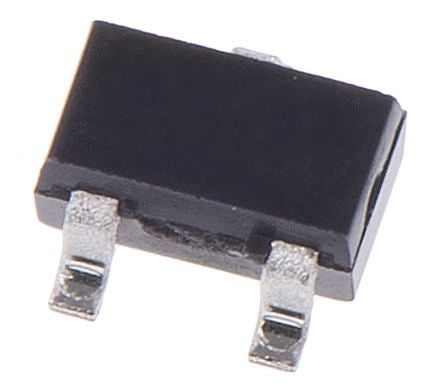

Nexperia 100V 175mA, Diode, 3-Pin SOT-323 BAS16W,115 [BAS16W,115]; 438-4560
by Nexperia
0₫
Mã kho: 4384560
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOT-323 (SC-70) |
| Maximum Continuous Forward Current | 175mA |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1.25V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 4ns |
| Peak Non-Repetitive Forward Surge Current | 4A |
