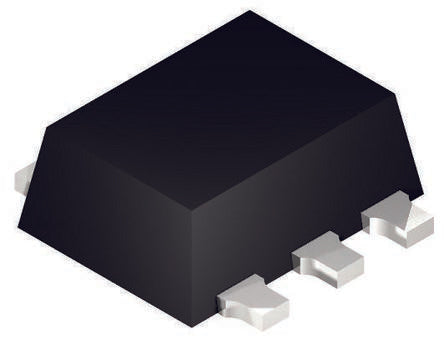

2N7002BKV,115 Dual N-Channel MOSFET, 340 mA, 60 V, 6-Pin SOT-666 Nexperia [2N7002BKV,115]; 792-0756
by Nexperia
0₫
Mã kho: 7920756
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 340 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-666 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 1.6 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.1V |
| Minimum Gate Threshold Voltage | 1.1V |
| Maximum Power Dissipation | 410 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Typical Gate Charge @ Vgs | 0.5 nC @ 4.5 V |
| Width | 1.3mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Length | 1.7mm |
| Height | 0.6mm |
| Maximum Operating Temperature | +150 °C |
