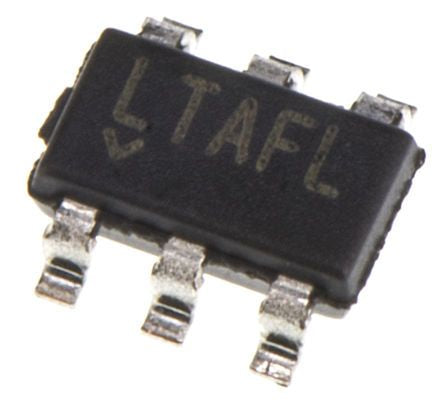

Monolithic Power Systems (MPS), MP2459GJ-P Step-Down Switching Regulator 500mA Adjustable 6-Pin, TSOT-23 [MP2459GJ-P]; 170-9356
0₫
Mã kho: 1709356
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 500mA |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.81 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 55 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 6 |
| Package Type | TSOT-23 |
| Switching Regulator | Yes |
| Length | 3mm |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 3 x 1.7 x 0.9mm |
| Maximum Switching Frequency | 580 kHz |
| Minimum Operating Temperature | -40 °C |
| Width | 1.7mm |
| Height | 0.9mm |
| Efficiency | 0.9 |
