![Molex 90325-3006 6706098](http://nguyenxuong.com/cdn/shop/products/R324810-91_2183d2e2-6671-4613-a752-59bd7e9bceaf_369x355.jpg?v=1594245296)

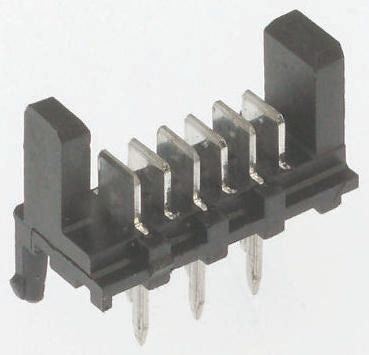

Molex 6-Way IDC Connector Plug Through Hole Mount, 1-Row [90325-3006]; 670-6098
by Molex
0₫
Mã kho: 6706098
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 6 |
Number of Rows | 1 |
Gender | Male |
Pitch | 1.27mm |
Mounting Type | Through Hole |
Body Orientation | Straight |
Termination Method | IDC |
Current Rating | 1.2A |
Contact Plating | Gold over Nickel |
Series | Picoflex |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +105°C |
Voltage Rating | 250 V ac |
Housing Material | PBT |
Contact Material | Brass |
