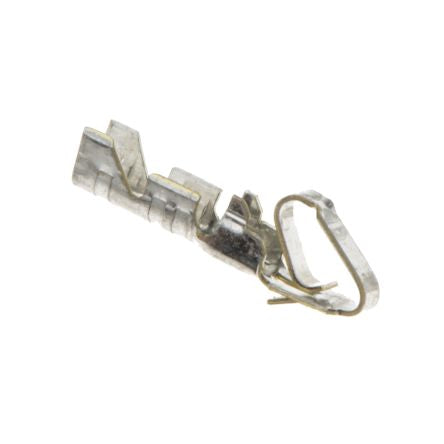

Molex KK 4809 Crimp Terminal Contact, Female, 0.05mm² to 0.35mm², 30AWG to 22AWG, Tin Plating [08-50-0032]; 467-598
by Molex
0₫
Mã kho: 467598
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| For Use With | KK 254 and KK Connector Housings |
| Series | KK |
| Minimum Wire Size mm² | 0.05mm² |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 30AWG |
| Contact Plating | Tin |
| Maximum Wire Size AWG | 22AWG |
| Contact Material | Brass Alloy |
| Series Number | 4809 |
| Maximum Contact Resistance | 20mΩ |
| CAD Drawing | 3D CAD Model |
