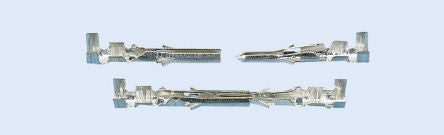

02-06-5102 Molex STANDARD .062" Female Crimp Terminal Contact 18AWG [02-06-5102]; 670-7019
by Molex
0₫
Mã kho: 6707019
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| For Use With | STANDARD .062" Connector Housing |
| Series | STANDARD .062" |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Termination Method | Crimp |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Contact Material | Brass |
| Series Number | 1561 |
| Maximum Contact Resistance | 3.2mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
