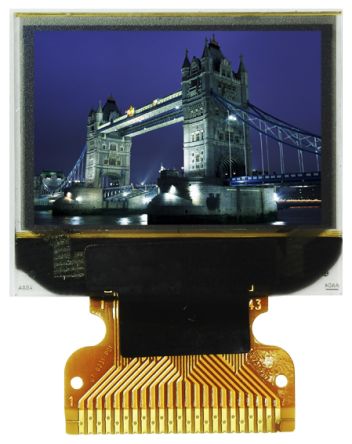

Midas 0.95in Blue, Green, Red Passive matrix OLED Display 96 x 64 TAB Multi Interface [MCOT096064AZ-RGBM]; 171-1674
by Midas
0₫
Mã kho: 1711674
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diagonal Display Size | 0.95in |
Viewing Area Dimensions | 23.938 x 12.058mm |
Matrix Type | Passive |
Display Colours | Blue, Green, Red |
Resolution | 96 x 64 |
Number of Colours | 65536 |
Contrast Ratio | >1000:1 |
Driver Mounting | TAB |
Interface Ports | Multi |
Dimensions | 26.7 x 19.26 x 1.45mm |
Depth | 1.45mm |
Height | 19.26mm |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -30°C |
Viewing Area Height | 12.058mm |
Viewing Area Width | 23.938mm |
Operating Temperature Range | -30 → +70°C |
Width | 26.7mm |
