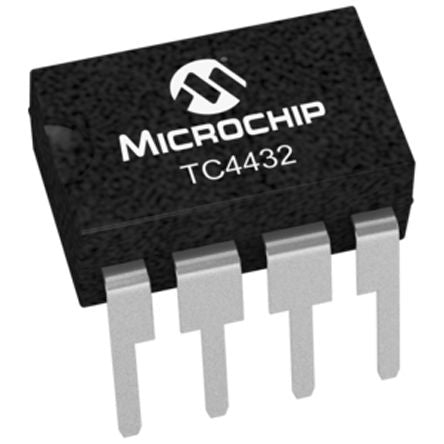

Microchip TC4432VPA High Side MOSFET Power Driver, 1.5A 8-Pin, PDIP [TC4432VPA]; 144-9282
by Microchip
0₫
Mã kho: 1449282
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 1 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 30 V |
| Topology | High Side |
| Mounting Type | Through Hole |
| Peak Output Current | 1.5A |
| Number of Outputs | 1 |
| Polarity | Non-Inverting |
| Package Type | PDIP |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS, TTL |
| Length | 9.27mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 9.27 x 6.35 x 3.3mm |
| Maximum Operating Temperature | +125 °C |
| Width | 6.35mm |
| Height | 3.3mm |
