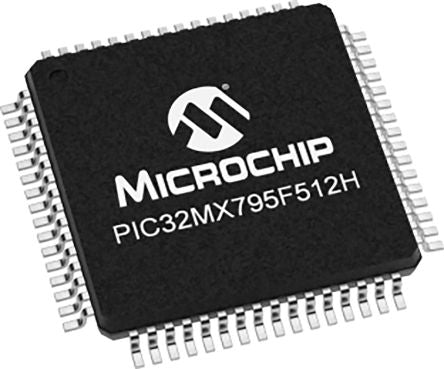

Microchip Technology PIC32MX795F512H-80V/PT, 32bit MIPS32 Microcontroller, 80MHz, 512 kB Flash, 64-Pin TQFP [PIC32MX795F512H-80V/PT]; 177-3933
by Microchip
0₫
Mã kho: 1773933
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC32 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | MIPS32 |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 80MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of UART Channels | 6 |
| Number of I2C Channels | 4 |
| Number of Ethernet Channels | 1 |
| Number of Timers | 2 |
| PWM Channels | 5 |
| Width | 10mm |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Dimensions | 10 x 10 x 1.05mm |
| Height | 1.05mm |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +105 °C |
| Timer Resolution | 16 bit, 32 bit |
| Program Memory Type | Flash |
| ADCs | 1 (16 x 10 bit) |
| Length | 10mm |
| Pulse Width Modulation | 1 (5 Channel) |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Maximum Number of Ethernet Channels | 1 |
| Number of ADC Units | 1 |
| Instruction Set Architecture | C |
| Number of CAN Channels | 1 |
