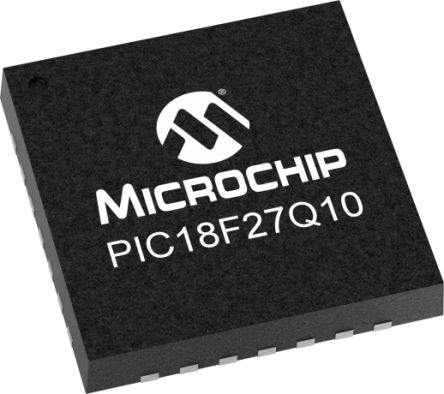

Microchip, PIC18F27Q10-I/STX [PIC18F27Q10-I/STX]; 193-6505
by Microchip
0₫
Mã kho: 1936505
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC18F27Q10 |
Package Type | VQFN |
Mounting Type | Surface Mount |
Pin Count | 28 |
Data Bus Width | 8bit |
Program Memory Size | 128 kB |
Maximum Frequency | 64MHz |
RAM Size | 3.615 MB |
Number of PWM Units | 1 |
ADC Channels | 24 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 1.8 → 5.5 V |
Timer Resolution | 8 bit, 16 bit |
Height | 0.95mm |
Number of LIN Channels | 1 |
PWM Channels | 2 |
Width | 4mm |
ADC Resolution | 10bit |
Timers | 1 (3 x 8 bit), 1 (4 x 16 bit) |
Number of I2C Channels | 2 |
Number of Timers | 3, 4 |
ADCs | 1 (24 x 10 bit) |
Length | 4mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Program Memory Type | Flash |
Number of ADC Units | 1 |
Instruction Set Architecture | Harvard |
Pulse Width Modulation | 1 (2 x 10 bit) |
PWM Resolution | 10bit |
Dimensions | 4 x 4 x 0.95mm |
Number of UART Channels | 2 |
