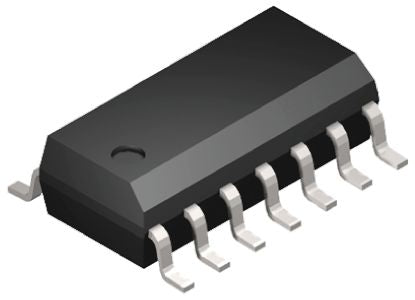

Microchip PIC16F753-I/SL, 8bit PIC Microcontroller, 20MHz, 2K words Flash, 14-Pin SOIC [PIC16F753-I/SL]; 145-9029
by Microchip
0₫
Mã kho: 1459029
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 14 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 2k words |
Maximum Frequency | 20MHz |
RAM Size | 128 B |
USB Channels | 1 |
Number of PWM Units | 1 |
ADC Channels | 8 |
Typical Operating Supply Voltage | 2 → 5.5 V |
Number of Timers | 2 |
Pulse Width Modulation | 1(10 bit) |
Program Memory Type | Flash |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 10bit |
Dimensions | 8.65 x 3.9 x 1.25mm |
Timers | 1(1 x 16 bit), 1(3 x 8 bit) |
Width | 3.9mm |
Height | 1.25mm |
Timer Resolution | 8 bit, 16 bit |
ADCs | 1(8 x 10 bit) |
Length | 8.65mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Instruction Set Architecture | RISC |
PWM Resolution | 10bit |
