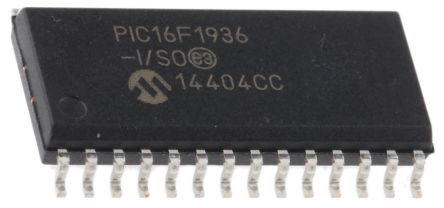

Microchip PIC16F1936-I/SO, 8bit PIC Microcontroller, 32MHz, 8192 x 14 words, 256 B Flash, 28-Pin SOIC [PIC16F1936-I/SO]; 666-9743
by Microchip
0₫
Mã kho: 6669743
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 256 B, 8192 x 14 words |
Maximum Frequency | 32MHz |
RAM Size | 512 B |
Number of PWM Units | 5 |
ADC Channels | 11 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 1.8 → 5.5 V |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Length | 17.9mm |
ADCs | 11 x 10 bit |
Width | 7.5mm |
Minimum Operating Temperature | -40 °C |
PWM Resolution | 10bit |
ADC Resolution | 10bit |
Number of I2C Channels | 1 |
Number of Timers | 5 |
Program Memory Type | Flash |
Dimensions | 17.9 x 7.5 x 2.35mm |
Timers | 1 x 16 bit, 4 x 8 bit |
Number of USART Channels | 1 |
Height | 2.35mm |
Timer Resolution | 8 bit, 16 bit |
Pulse Width Modulation | 2(10 bit) (CCP), 3(10 bit) (ECCP) |
