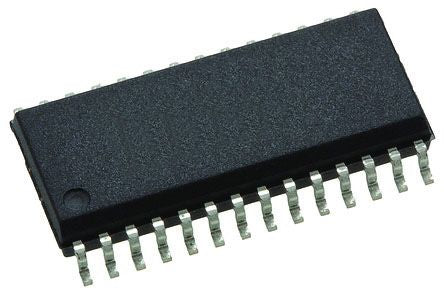

Microchip PIC16F18856-I/SO, 8bit PIC Microcontroller, 32MHz, 28 kB Flash, 28-Pin SOIC [PIC16F18856-I/SO]; 111-5557
by Microchip
0₫
Mã kho: 1115557
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 28 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 2.048 kB |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Number of ADC Units | 1 |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 17.9mm |
| ADCs | 1 (24 x 10 bit) |
| Instruction Set Architecture | RISC |
| ADC Resolution | 10bit |
| Height | 2.35mm |
| Timer Resolution | 8 bit, 16 bit |
| Dimensions | 17.9 x 7.5 x 2.35mm |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Program Memory Type | Flash |
| Number of Timers | 7 |
| PWM Channels | 2 |
| Timers | 3 x 8 bit, 4 x 16 bit |
| Width | 7.5mm |
