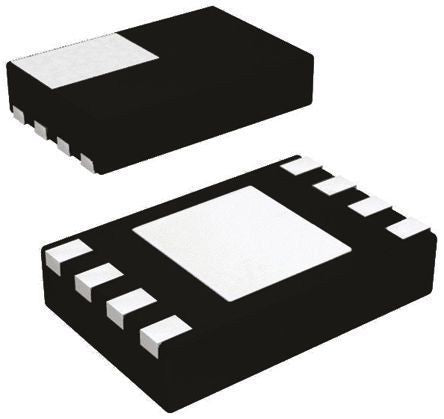

MCP6232T-E/MNY Microchip,, Op Amp, RRIO, 300kHz, 1.8 → 6 V, 8-Pin TDFN [MCP6232T-E/MNY]; 165-1901
by Microchip
0₫
Mã kho: 1651901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Amplifier Type | General Purpose |
Mounting Type | Surface Mount |
Package Type | TDFN |
Power Supply Type | Single |
Number of Channels per Chip | 2 |
Pin Count | 8 |
Typical Single Supply Voltage | 1.8 → 6 V |
Typical Gain Bandwidth Product | 300kHz |
Typical Slew Rate | 0.15V/µs |
Maximum Operating Frequency | 1 kHz |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Length | 2mm |
Typical Input Voltage Noise Density | 52nV/√Hz |
Dimensions | 2 x 3 x 0.75mm |
Typical Voltage Gain | 110 dB |
Width | 3mm |
Rail to Rail | Rail to Rail Input/Output |
Height | 0.75mm |
