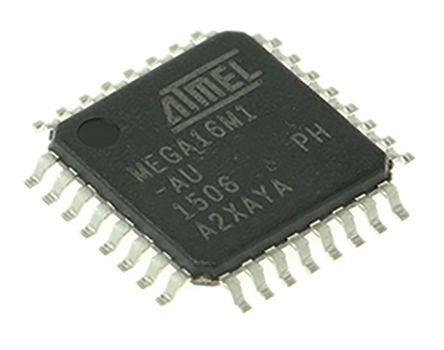

Microchip Technology ATMEGA16M1-AU, 8bit AVR Microcontroller, 16MHz, 16 kB Flash, 32-Pin TQFP [ATMEGA16M1-AU]; 127-8281
by Microchip
0₫
Mã kho: 1278281
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATmega |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 1 kB |
| Number of PWM Units | 1 |
| ADC Channels | 11 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Number of Timers | 2 |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 12bit |
| Pulse Width Modulation | 1(10 x 12 bit) |
| ADC Resolution | 10bit |
| Timers | 1 (1 x 16 bit), 1 (1 x 8 bit) |
| Dimensions | 7.1 x 7.1 x 1.05mm |
| Width | 7.1mm |
| Height | 1.05mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1(11 x 10 bit) |
| Length | 7.1mm |
| PWM Channels | 10 |
