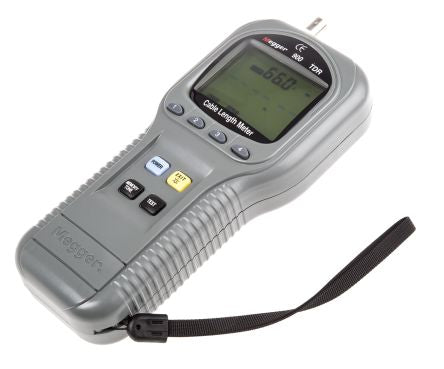

Megger TDR900 TDR Cable Fault Locator, 3.7km [TDR900]; 764-2838
by Megger
0₫
Mã kho: 7642838
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Range | 3.7km |
| Resolution | 50 cm |
| Cable Type | CATV Cable, LAN Cable, Power Cable, Telephone Cable |
| Maximum Pulse Width | 1100Hz |
| Minimum Pulse Width | 910Hz |
| Pulse Amplitude | 5V Pk-Pk |
| Output Impedance | 25 Ω, 50 Ω, 75 Ω, 100 Ω, 125 Ω, 150 Ω |
| Velocity Factor/Propagation Velocity | 0.999 |
| Battery Life | 5000 tests |
| Battery Type | AA |
| Display Type | LCD |
| Power Source | Battery |
| Minimum Operating Temperature | -18°C |
| Model Number p | TDR900 |
| Weight | 450g |
| Dimensions | 100 x 44 x 235mm |
| Height | 235mm |
| Maximum Operating Temperature | +60°C |
| Width | 44mm |
| Length | 100mm |
