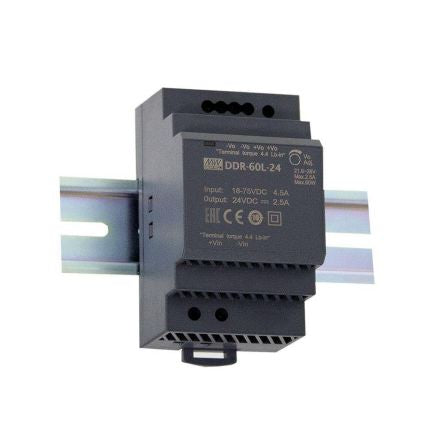

Mean Well, DDR-60 DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 2.5A Output Current [DDR-60G-24]; 175-7794
by Mean Well
0₫
Mã kho: 1757794
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 9 → 36V dc |
| Output Voltage | 24 V dc |
| Output Current | 2.5 A |
| Power Rating | 60W |
| Number of Outputs | 1 |
| Height | 90mm |
| Width | 52.5mm |
| Load Regulation | ±0.5% |
| Mounting Type | DIN Rail Mount |
| Series | DDR-60 |
| Output Voltage Adjustment Range | 21.6 → 28V |
| Maximum Temperature | +85°C |
| MTBF | 611kh |
| Ripple And Noise | 100mV Pk-Pk |
| Minimum Temperature | -40°C |
| Depth | 54.5mm |
