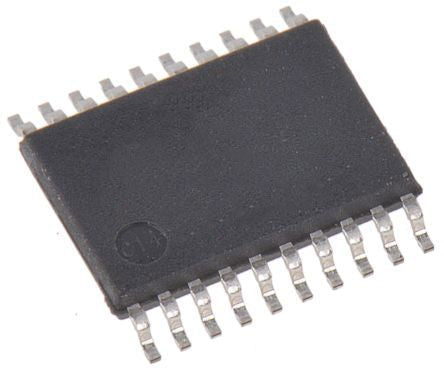

8Ch 12/10/8Bit Voltage DACs Internal Ref [MAX5725BAUP+]; 190-4645
0₫
Mã kho: 1904645
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 8 |
Digital Interface Type | 4-Wire Serial, Microwire, Serial (DSP), SPI/QSPI |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Voltage Reference | External, Internal |
Pin Count | 20 |
Maximum Settling Time | 4.5 (Typ.)µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±0.5%FSR |
Length | 6.6mm |
Dimensions | 6.6 x 4.5 x 0.95mm |
Minimum Operating Temperature | -40 °C |
Width | 4.5mm |
Maximum Operating Temperature | +125 °C |
Height | 0.95mm |
Integral Nonlinearity Error | ±1LSB |
