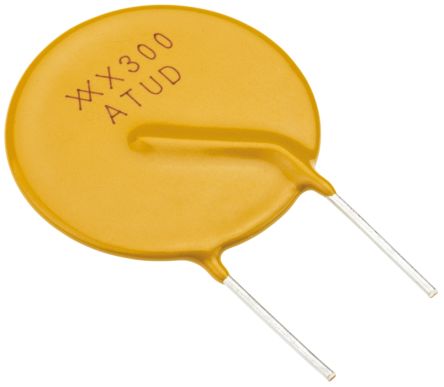

Littelfuse 3A Hold current, Radial Leaded PCB Mount Resettable Fuse, 72V [RXEF300]; 517-6742
by Littelfuse
0₫
Mã kho: 5176742
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 6A |
| Time to Trip | 19.8s |
| Hold Current | 0.125 |
| Voltage Rating | 72 V |
| Maximum Current | 40 A |
| Minimum Resistance | 0.04Ω |
| Maximum Resistance | 100mΩ |
| Power Dissipation | 2.8W |
| Body Height | 28.6mm |
| Body Length | 23.9mm |
| Body Width | 3mm |
| Wire Pitch | 9.4 → 10.9mm |
| Wire Length | 7.6mm |
| Wire Diameter | 0.81mm |
