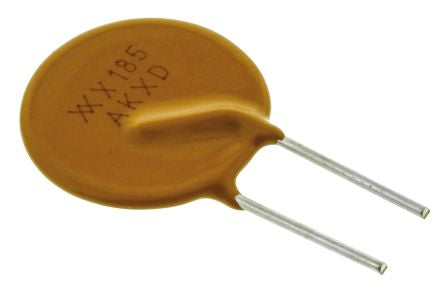

Littelfuse 1.85A Hold current, Radial Leaded PCB Mount Resettable Fuse, 72V [RXEF185]; 517-6720
by Littelfuse
0₫
Mã kho: 5176720
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 3.7A |
| Time to Trip | 12.6s |
| Hold Current | 1.85 A |
| Voltage Rating | 72 V |
| Maximum Current | 40 A |
| Minimum Resistance | 0.08Ω |
| Maximum Resistance | 190mΩ |
| Power Dissipation | 2.1W |
| Body Height | 22.4mm |
| Body Length | 17.5mm |
| Body Width | 3mm |
| Wire Pitch | 4.3 → 5.8mm |
| Wire Length | 7.6mm |
| Wire Diameter | 0.81mm |
