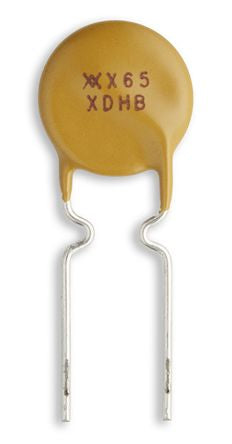

Littelfuse 0.65A Hold current, Radial Resettable Wire Ended Fuses, 72 V dc, 72 V ac [RF2568-000]; 174-0432
by Littelfuse
0₫
Mã kho: 1740432
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 1.3A |
| Time to Trip | 5.3s |
| Hold Current | 0.65 A |
| Voltage Rating | 72 V ac, 72 V dc |
| Maximum Current | 40 A |
| Minimum Resistance | 0.31Ω |
| Maximum Resistance | 720mΩ |
| Power Dissipation | 0.88W |
| Body Height | 14.5mm |
| Body Length | 9.4mm |
| Body Width | 3mm |
| Wire Pitch | 5.8mm |
| Wire Length | 7.6mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
