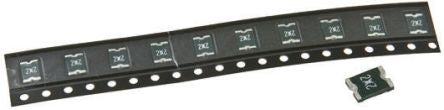

Littelfuse 1.25A Surface Mount Resettable Fuse, 6V dc [MINISMDC125F]; 506-921
by Littelfuse
0₫
Mã kho: 506921
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 2.5A |
| Voltage Rating | 6 V dc |
| Time to Trip | 0.4s |
| Hold Current | 1.25 A |
| Maximum Current | 100 A |
| Length | 4.73mm |
| Height | 0.48mm |
| Width | 3.41mm |
| Minimum Resistance | 0.05Ω |
| Maximum Resistance | 140mΩ |
| Power Dissipation | 0.8W |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | Maximum of +85 °C |
| Dimensions | 4.73 x 3.41 x 0.48mm |
