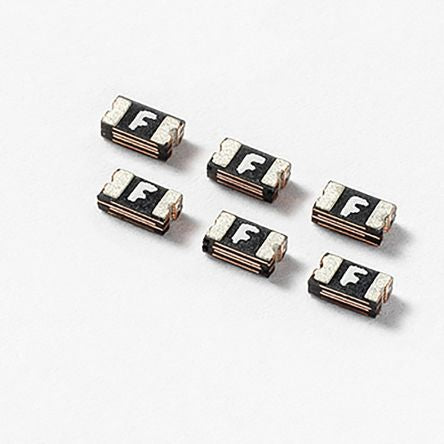

Littelfuse 0.04A Resettable Surface Mount Fuse, 24V dc [0603L004YR]; 174-0346
by Littelfuse
0₫
Mã kho: 1740346
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 120mA |
| Voltage Rating | 24 V dc |
| Time to Trip | 1s |
| Hold Current | 0.04 A |
| Maximum Current | 20 A |
| Length | 1.8mm |
| Height | 0.75mm |
| Width | 1mm |
| Terminal Material | Solder Plated Copper |
| Minimum Resistance | 4Ω |
| Maximum Resistance | 40Ω |
| Power Dissipation | 0.5W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85 °C |
| Dimensions | 1.8 x 1 x 0.75mm |
| Fuse Speed | F |
| Series | 0603L |
