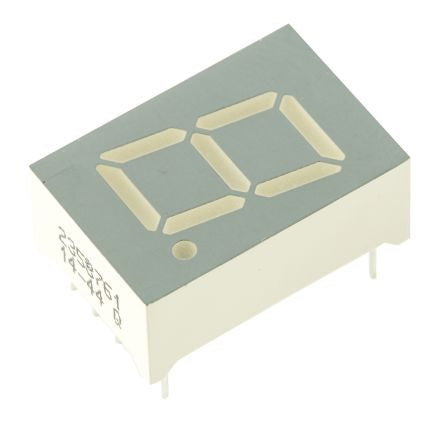

SC05-11SRWA Kingbright 7-Segment LED Display, CC Red 34 mcd RH DP 12.7mm [SC05-11SRWA]; 235-8761
by Kingbright
0₫
Mã kho: 2358761
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 640 nm |
Character Width | 7.3mm |
Character Height | 12.7mm |
Common Connection | Cathode |
Mounting Type | Through Hole |
External Dimensions | 19 x 12.7 x 8mm |
External Height | 19mm |
External Depth | 8mm |
External Width | 12.7mm |
Luminous Intensity | 34 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Forward Voltage | 1.85 V |
Minimum Operating Temperature | -40°C |
Forward Current | 30mA |
Decimal Orientation | Right Side |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
