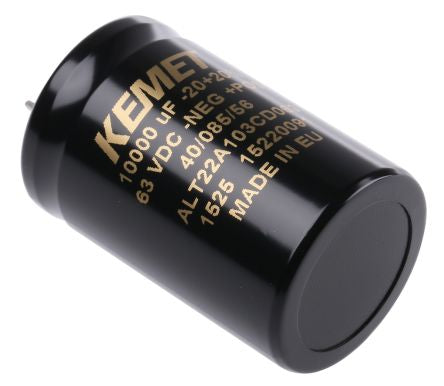

KEMET 10000μF 63V dc Aluminium Electrolytic Capacitor, Flush Mount 35 x 55mm +85°C 35mm 55mm [ALT22A103CD063]; 339-7931
by KEMET
0₫
Mã kho: 3397931
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10000 µF |
| Voltage | 63 V dc |
| Mounting Type | Solder Lug |
| Technology | Electrolytic |
| Dimensions | 35 x 55mm |
| Height | 55mm |
| Length | 55mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 35mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 18000 h @ +85 °C/63V dc/Ir |
| Series | ALT22 |
| Tolerance | ±20% |
| Ripple Current | 4.97 A @ 100Hz |
| Polarised | Polar |
| Leakage Current | 3.78 mA |
