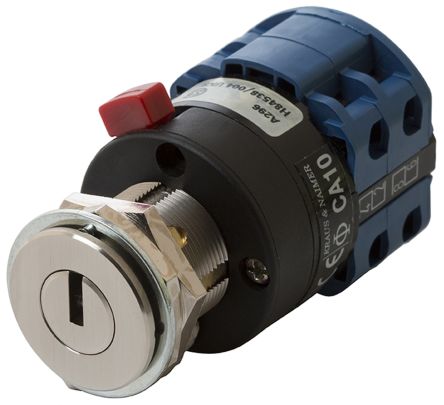

Key Switch, DP-CO, 20 A 2-Way, -5 → +55°C [K31100802-NI]; 124-5263
by Kaba
0₫
Mã kho: 1245263
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Positions | 2 |
| Switch Operation | Spring Return |
| Contact Configuration | DP-CO |
| Contact Current Rating | 20 A |
| Key Type | Random |
| Terminal Type | Screw |
| Bezel Shape | Round |
| Depth Behind Panel | 70.1mm |
| Key Index Angle | 30° |
| Contact Material | Silver |
| Operating Temperature Range | -5 → +55°C |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -5°C |
| Standards Met | CSA |
| Voltage Rating DC | 24V |
| Mechanical Life | 1000000Operations |
| Voltage Rating AC | 440V |
