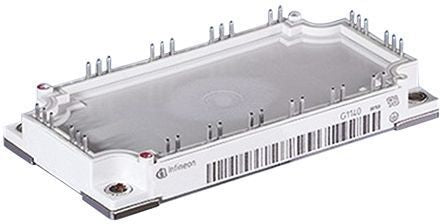

Infineon FS200R12KT4RBOSA1, EconoPACK 3 3 Phase Bridge IGBT Transistor Module, 280 A max, 1200 V, Surface Mount [FS200R12KT4RBOSA1]; 145-8764
by Infineon
0₫
Mã kho: 1458764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Configuration | 3 Phase |
Configuration | 3 Phase Bridge |
Maximum Continuous Collector Current | 280 A |
Maximum Collector Emitter Voltage | 1200 V |
Maximum Gate Emitter Voltage | ±20V |
Channel Type | N |
Mounting Type | Surface Mount |
Package Type | EconoPACK 3 |
Pin Count | 35 |
Maximum Power Dissipation | 1 kW |
Dimensions | 122 x 62 x 17mm |
Height | 17mm |
Length | 122mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -40 °C |
Width | 62mm |
