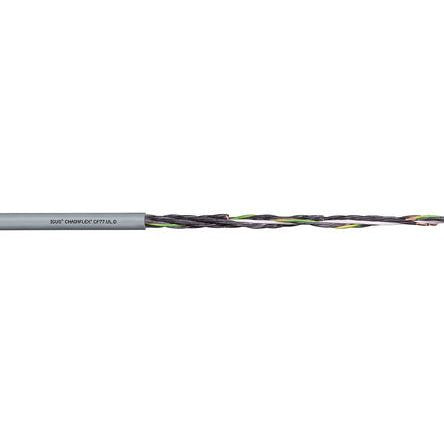

Igus 12 Core Polyurethane PUR Sheath Actuator/Sensor Cable, 1.5 mm² CSA [CF77.UL.15.12.D]; 765-4308
by Igus
0₫
Mã kho: 7654308
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 12 |
Cross Sectional Area | 1.5 mm² |
Screened/Unscreened | Unscreened |
Outer Diameter | 14mm |
Voltage Rating | 300 V |
Sheath Material | Polyurethane PUR |
American Wire Gauge | 15 AWG |
Cable Shape | Multicore |
Earth Cable | Yes |
Insulation Material | TPE |
Sheath Colour | Grey |
Minimum Bend Radius | 4 x D |
Conductor Material | Bare Copper |
Maximum Operating Temperature | +80°C |
Oil Resistant | Yes |
Minimum Operating Temperature | -35°C |
